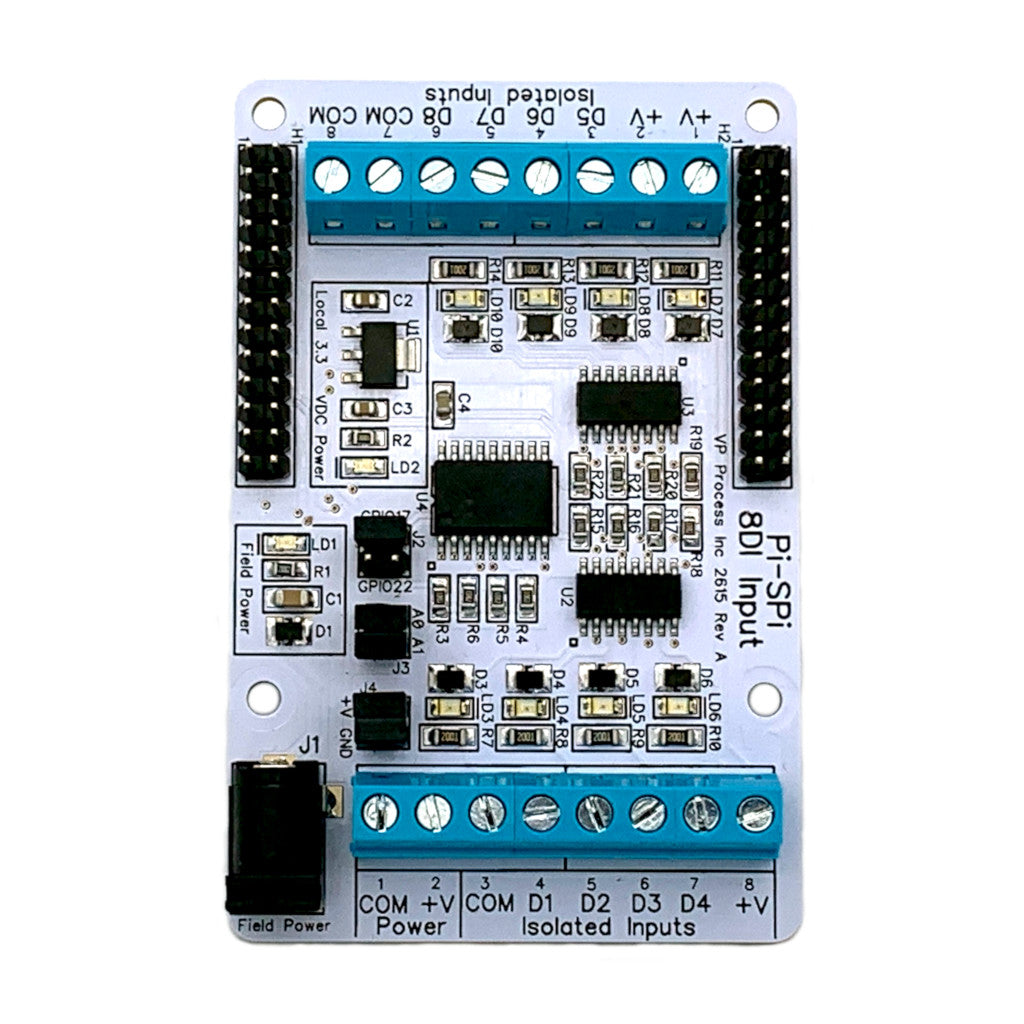

Pi-SPi-8DI Raspberry Pi Input Module DC/AC Opto-Isolated

Pi-SPi-8DI Raspberry Pi Digital Input Interface

Regular price $24.95 USD Sale

The all new digital input interface for the Raspberry PI is here! The Pi-SPi-8DI has 8 inputs that can either DC or AC (Max 24 V) and are optically isolated.

The design is based on the Microchip MCP23S08 IO expander. Each MCP23S08 has 4 addresses using the same SPI Chip Select line, meaning 4 modules (32 Inputs) can be used simultaneously.

 Node-Red support is now available.

The 26 pin GPIO expansion port is duplicated on either side of the module, so more modules can be added.

Features:

  • Identical foot print to the RPi 3
  • Separate field power input ( up to 24VDC or VAC)
  • Each module has its own 3.3VDC LDO regulator operating from the RPi 5VDC bus
  • No loading on the RPi 3.3VDC bus
  • Terminal Blocks for DC or AC inputs
  • LED indicators for power
  • LED ON Indicators for each Input
  • All inputs are optically isolated and can accept either VDC or VAC inputs, Max 24V

Pi-SPi-8DI Accessories:

  • Pi-SPi-PS-24VDC Field Power Supply
  • Pi-SPi-CABLE-40x26-2 (40 Pin to 26 Pin x 2") Required to connect to RPi
  • Pi-SPi-CABLE-40x40-2 (40 Pin to 40 Pin x 2")
  • Pi-SPi-CABLE-26x26-2 (26 Pin to 26 Pin x 2") Required to connect to PI-SPI Module
  • Pi-SPi-MTG-HDW Mounting hardware 4x1/2" Aluminum spaces c/w 8 4-40 Stainless Steel Screws

NOTE: All Accessories Including Ribbon Cables Sold Separately

Downloads

Schematic

PCB Layout



Sample Software (Python)

Please download the latest Widgetlords libwidgetlords library. The instructions can be found at

Getting Started with PI-SPI Libraries

All of the sample code examples are based on the latest library installation. Please note the code samples all use Python 3.

Basic Python Program "Read" Digital Inputs:


from time import sleep
from widgetlords.pi_spi import *

init()
inputs = Mod8DI()

while True:
    print(inputs.read())
    sleep(0.5)



The PI-SPI-8DI sample code programs and instructions can be found at

PI-SPI-8DI Python Code Samples

A complete set of Python demo code examples for the PI-SPI and PI-SPI-DIN series can be found on our GitHub repository:

https://github.com/widgetlords/libwidgetlords/tree/master/python



We have just added a DIN Rail Mounting Kit for the Raspberry Pi and the PI-SPI series!

VPE-4450A DIN Rail Mounting Kit
