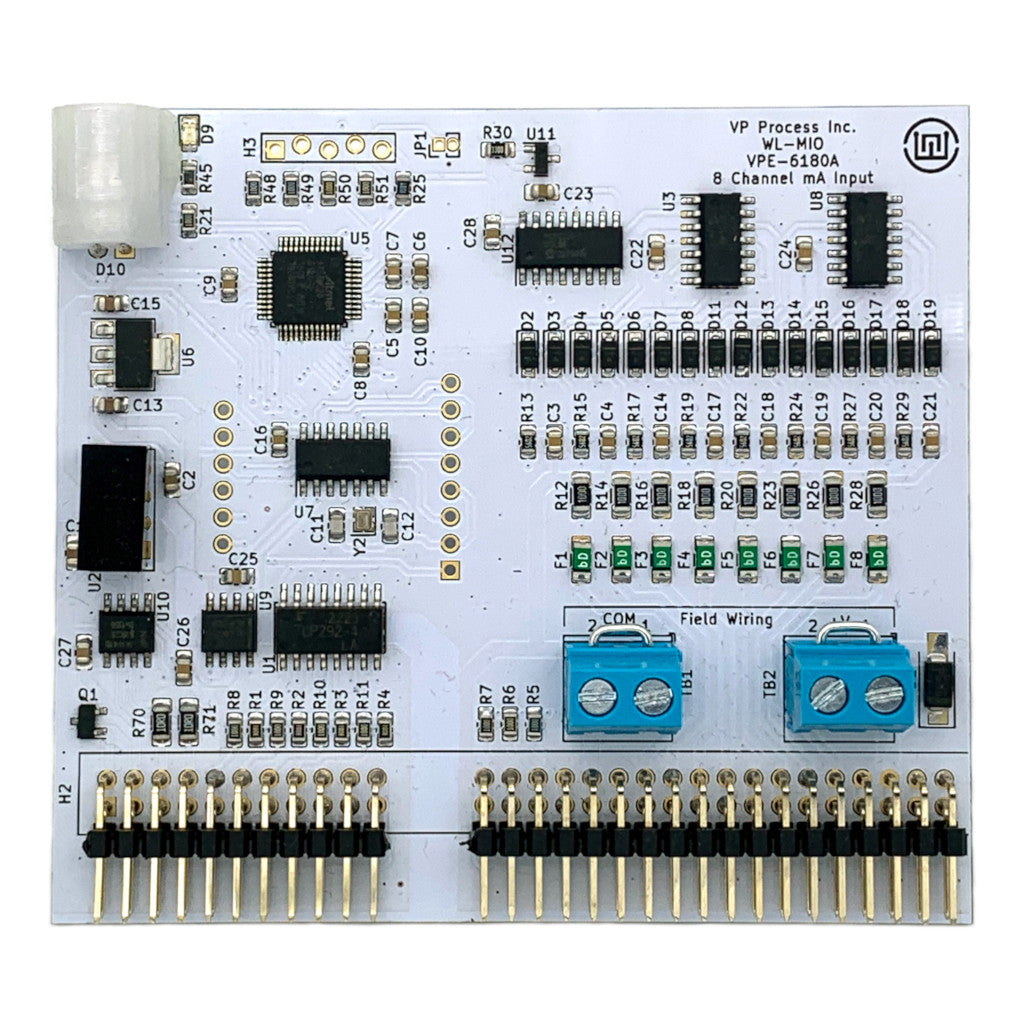

VPE-6180 Analog mA Input I/O Module

WL-MIO
Multipurpose I/O Process Controller

Analog 0 to 20 mA Input I/O Module 8 Channel, 12 Bit Resolution

For a complete description and specifications, please visit our website: wlmio.com

NOTE: WL-MIO Backplanes are sold separately.

Widgetlord’s proven PI-SPI and PI-SPI-DIN series of analog input modules are the basis for the design of this VPE-6180 module. Up to 8 channels of mA inputs are provided and the A/D conversion is provided using the Microchip MCP3208 Converter.

The front end can be isolated from the rest of the system by removing the Field Wiring jumpers. In this case, the field transmitters must be powered separately.

The VPE-6180 module is ideal for monitoring up to 8 loop powered 4 to 20 mA transmitters.

Up to 126 Analog mA Input modules (1008 inputs) are supported with the scalable WL-MIO Process Controller system. When a mixture of other WL-MIO I/O modules are utilized in a control design, the Analog mA Input module may be plugged into any WL-MIO Backplane position to accommodate wiring or control designs, or maintenance strategies. WL-MIO’s Analog mA Input module is hot-swappable when upgrade or replacement is required.

Block Diagram:

Field Wiring:

Application Note: How To Connect A Two Wire Transmitter
