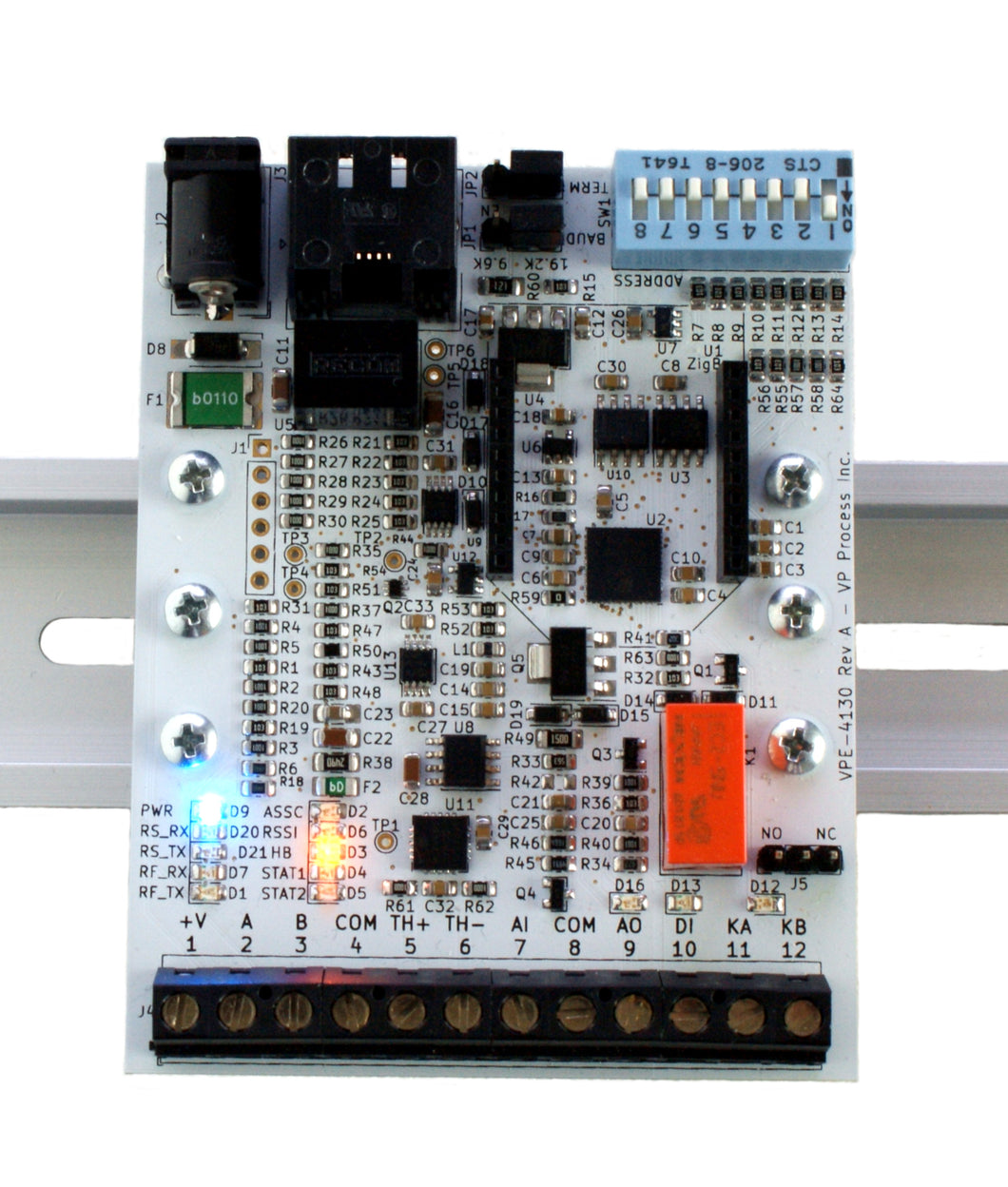

VPE-4130 Modbus RTU Universal I/O Module

The VPE-4130 is a universal I/O Modbus module. Analog Input, Output, Digital Input, Relay Contact Output PLUS Thermocouple Input. An optional 900 MHz radio module is available (please contact us for details).

Please allow up to 4 weeks for order processing

Standard Features:

• Modbus RTU
• DIN Rail Mountable (DIN Clips)
• Wide Supply Voltage (9-28 VDC)
• RS485 (9600 and 19.2K Baud)
• Thermocouple Input Programmable Types
  K,J,T,N,S,E,B,R (NIST ITS-90)
• SDAFE Analog Input 15 Bit Sigma/Delta A/D
  Programmable 4-20 mA, 0-5 VDC, 0-10 VDC
• Analog Output 4-20mA 15 Bit D/A
• Digital Input (Switch PNP)
• Relay Output Contact
• NO or NC 2 AMP Rating
• Dimensions 2.7” W x 3.4” L

Optional Features

• 900 Mhz Wireless Zigbee Radio Module

Modbus Functions:

0x01 Read Coils
0x02 Read Discrete Inputs
0x03 Read Holding Registers
0x04 Read Input Registers
0x05 Write Single Coil
0x06 Write Single Holding Register
0x0F Write Multiple Coils
0x10 Write Multiple Holding Registers
