Raspbery Pi to PI-SPI-DIN Series Adapter

Raspbery Pi to PI-SPI-DIN Series Adapter

Regular price $17.95 USD Sale

The PI-SPI-DIN series was designed to be DIN Rail mountable. Normally, all modules are connected to the main module - the PI-SPI-DIN-RTC-RS485. This main module supplies 5 VDC to the RPi, the applied field voltage (typically 24 VDC) to the PI-SPI-DIN series modules, and buffered SPI, I2C and Chip Select lines to the PI-SPI-DIN series modules.

In some applications, if the PI-SPI-DIN-RTC-RS485 features are not required, then the 26P-16P-PI-SPI-DIN-Adapter comes in handy.

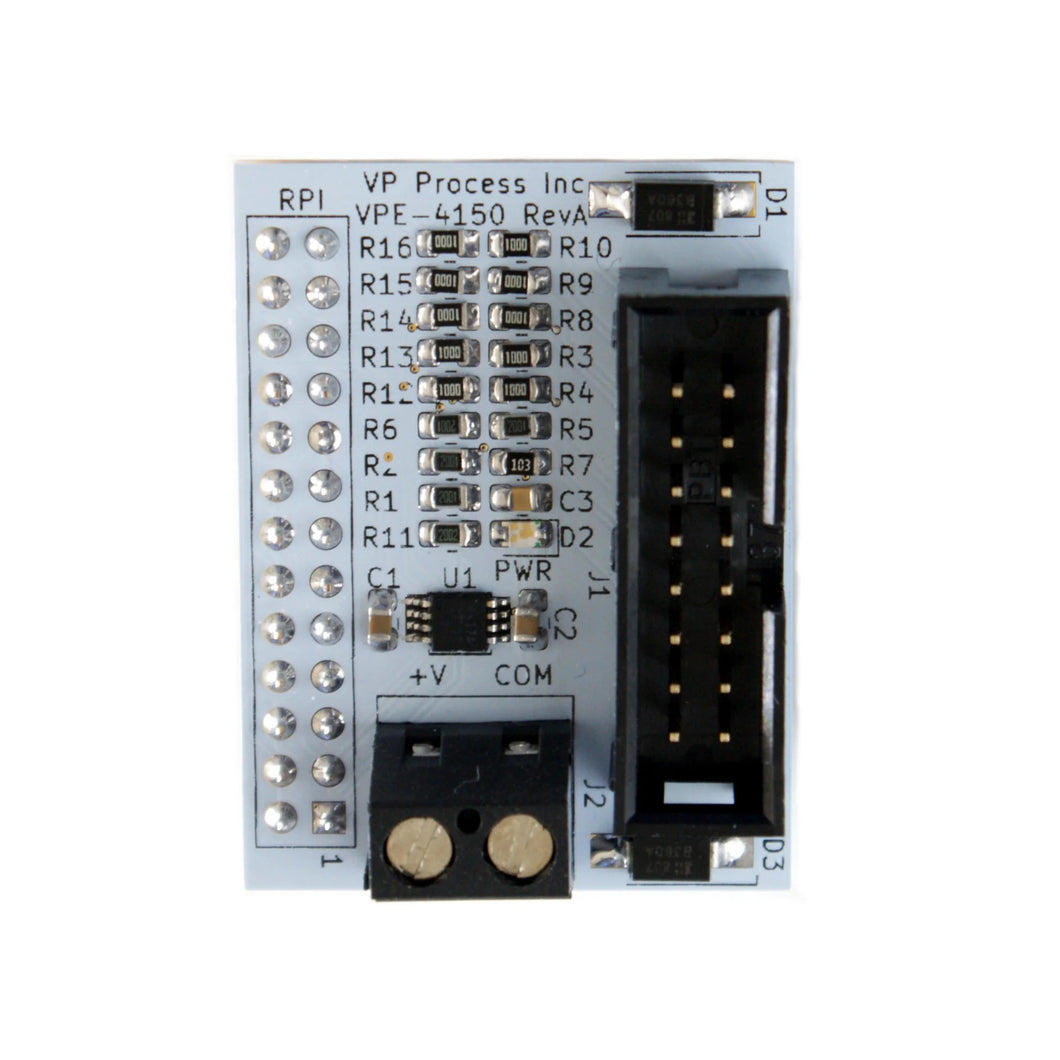

This adapter plugs into the RPi GPIO header (first 26 pins). The field power is applied to the terminal block +V and COM connections, and the supplied 16 Pin ribbon cable goes to the first PI-SPI-DIN Series Module. NOTE: the RPi still has to be powered from the 5VDC Mini-USB connector.

A typical PI-SPI-DIN application:

Replace the PI-SPI-DIN-RTC-RS485 with the RPi and Adpater:

Connect the RPI / PI-SPI-DIN Adapter to the PI-SPI-DIN series modules with the supplied 16 Pin ribbon cable.

Adapter Field Connections

PI-SPI-DIN Series Adapter to Raspberry Pi Field Connections
