WL-MIO
Multipurpose I/O Process Controller
Thermocouple Module
For a complete description and specifications, please visit our website: wlmio.com
NOTE: WL-MIO Backplanes are sold separately.

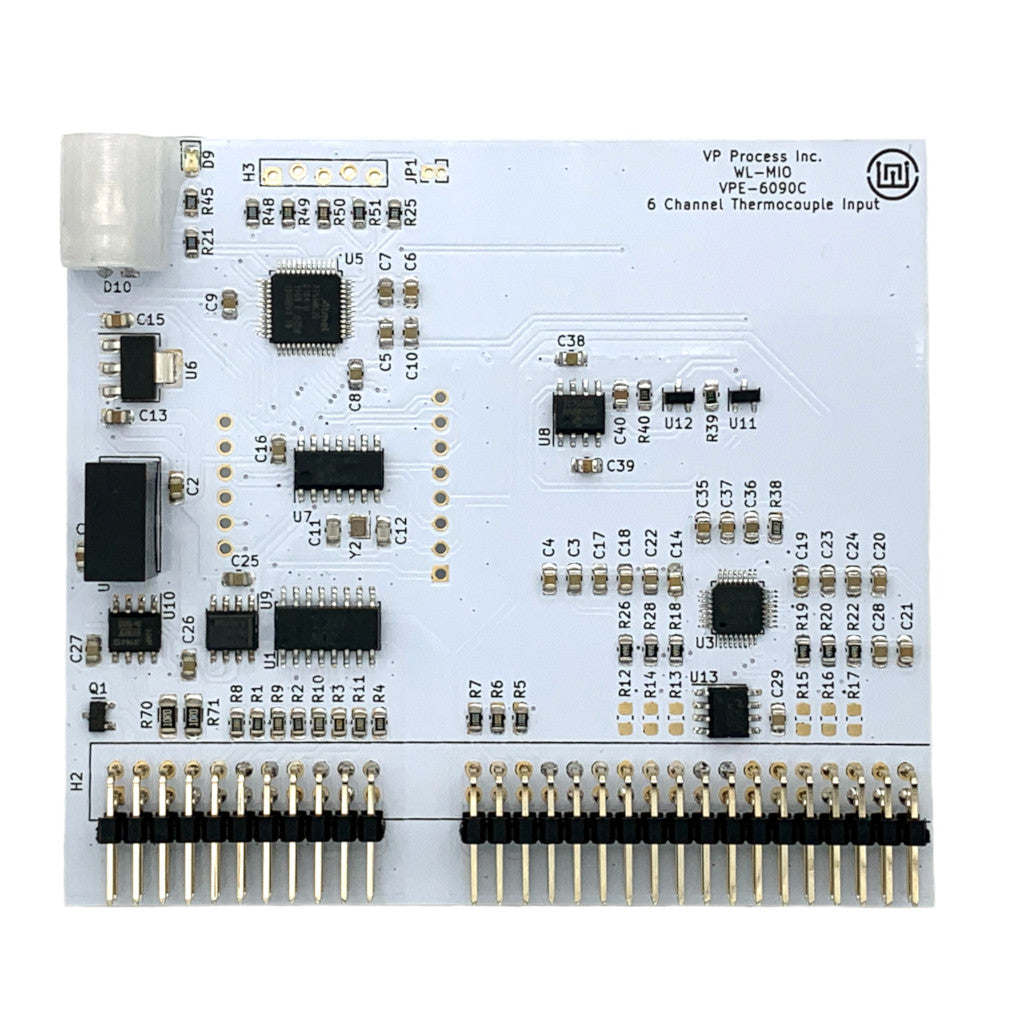

6 Channel Analog Input I/O Module Thermocouple / mVDC Inputs
WL-MIO’s Thermocouple / mVDC module provides connections for up to six channels of Types B, E, J, K, N, R, S, T Thermocouples or mVDC. The Thermocouple Type is programmable for each input channel to support a mixture of supplier’s thermocouples and/or mVDC inputs for customized field specific installations. Measurement data resolution is 16 bits.
Up to 127 Thermocouple / mVDC modules are supported with the scalable WL-MIO Process Controller system. When a mixture of other WL-MIO I/O modules are utilized in a control design, the Thermocouple / mVDC module module may be plugged into any WL-MIO Backplane position to accommodate wiring or control designs, or maintenance strategies. WL-MIO’s Thermocouple / mVDC module is hot-swappable when upgrade or replacement is required.
