WL-MIO
Multipurpose I/O Process Controller
RTD Module
For a complete description and specifications, please visit our website: wlmio.com
NOTE: WL-MIO Backplanes are sold separately.

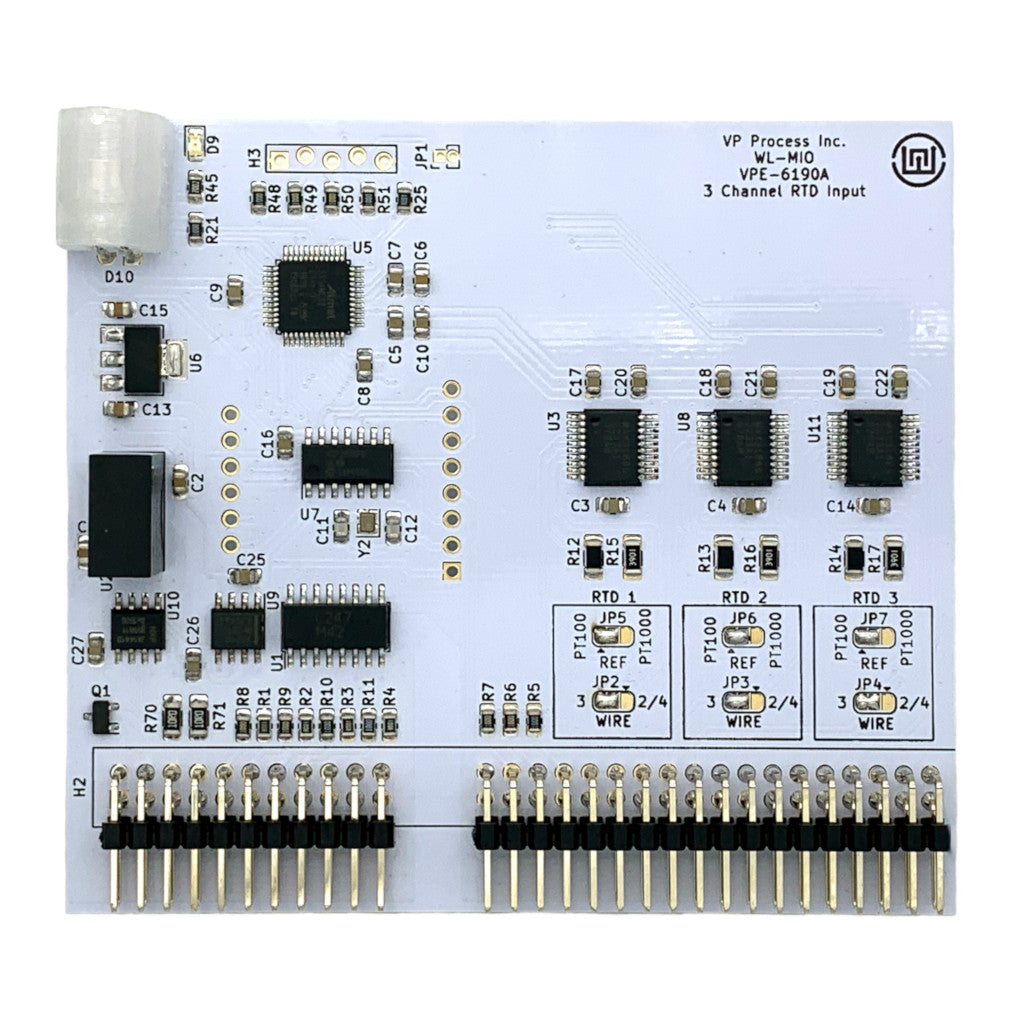

3 Channel Analog Input I/O Module RTD Input
Programmable PT100 or PT1000, 2, 3 or 4 Wire RTD per Channel
WL-MIO’s RTD module provides connections for up to three channels of Types PT100 or PT1000 RTD. Each RTD type and wiring connection (2, 3 or 4 Wire) is programmable for each input channel to support a mixture of supplier’s RTD's for customized field specific installations. Measurement data resolution is 15 bits.
Up to 127 RTD modules are supported with the scalable WL-MIO Process Controller system. When a mixture of other WL-MIO I/O modules are utilized in a control design, the RTD module may be plugged into any WL-MIO Backplane position to accommodate wiring or control designs, or maintenance strategies. WL-MIO’s RTD module is hot-swappable when upgrade or replacement is required.
