PLC Starter Kit c/w Input/Output I/O Modules

The PI-SPI-DIN-PLC Starter Kits are ideal for PLC and automation applications. We offer 3 styles of kits, each kit is fully expandable by using the PI-SPI-DIN series of input/output I/O modules. Python, C and Node-Red support is available.

Each PI-SPI-DIN-PLC kit comes complete with:

• PI-SPI-DIN-RTC-RS485-CLIP Main I/O Module
• PI-SPI-DIN-4KO-CLIP Relay Output I/O Module
• PI-SPI-DIN-xxx-CLIP Input I/O Module
• DIN Rail Mount Power Supply (80 to 240 VAC Input, 24 VDC @ 0.5A Output
• All Ribbon Cables

NOTE: Raspberry Pi NOT included

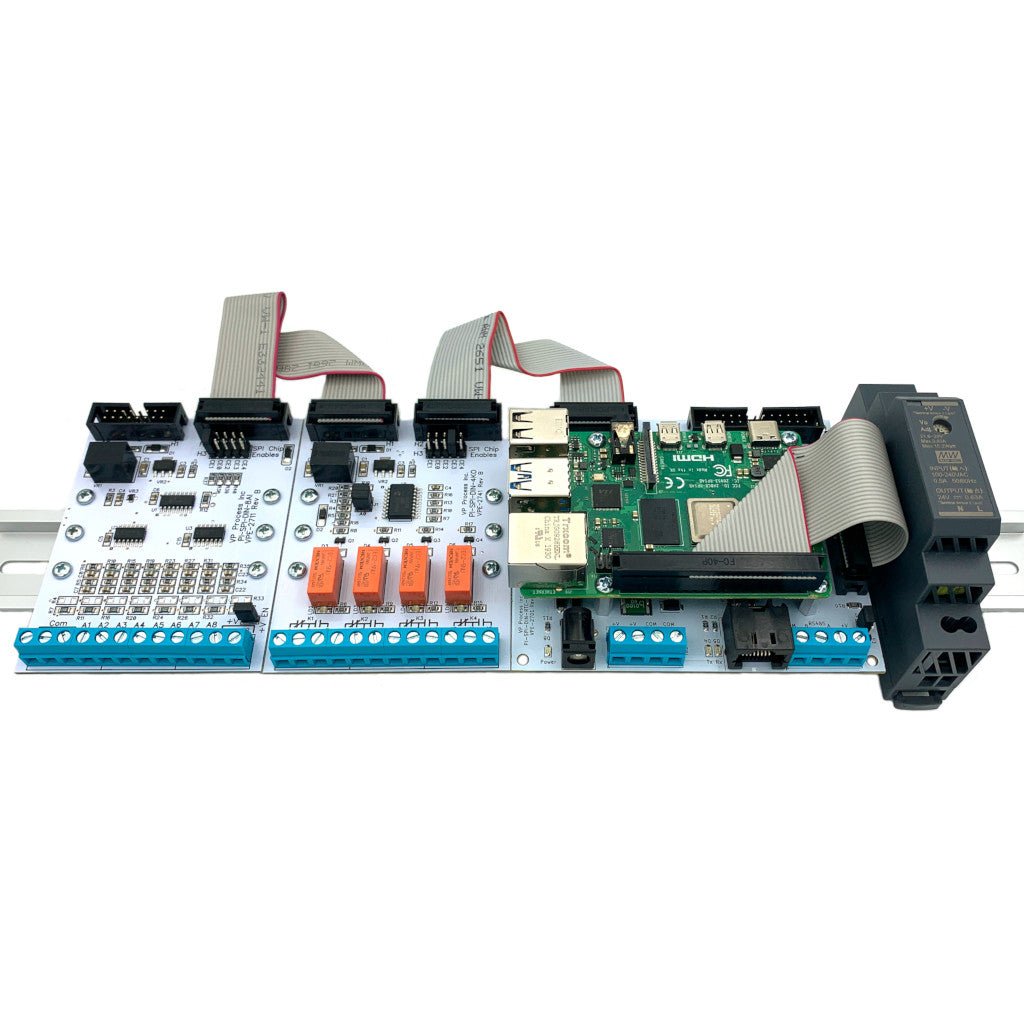

Analog 4-20mA Input I/O Module Kit - PI-SPI-DIN-PLC-8AI (As Shown Above)

• 8 Channels 4-20 mA Input
• 4 Relay Outputs
• 120 - 240 VAC input
• 24 VDC at 0.5 A

Analog Temperature (Thermistor) Input I/O Module Kit - PI-SPI-DIN-PLC-TEMP

• 8 Channels Thermistor Input 10K 3380 Beta (2 Thermistors with 36" leads Included)
• 4 Relay Outputs
• 120 - 240 VAC input
• 24 VDC at 0.5 A

Digital Input I/O Module Kit - PI-SPI-DIN-PLC-8DI

• 8 Channels Isolated Digital Input
• 4 Relay Outputs
• 120 - 240 VAC input
• 24 VDC at 0.5 A
